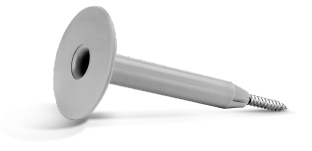

  2. Telescopic sleeve with round plate R-GOK 50x105 mm polypropylene - cardboard box - 250 pcs.

Universal
Outlet

R-GOK-105

5906675106748

Telescopic sleeve for flat roof insulation fixings

Download model Perform the calculations

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    250.00 pcs.3.68 kg

  • Bulk pack

    250.00 pcs.3.68 kg

  • Pallet

    14000.00 pcs.206.08 kg

This product has been withdrawn from sale.

Related products

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 80mm, Zinc Flake - cardboard box - 250 pcs.

Torx25 long bits, 200 mm - blister - 1 pc.

Rebardrill SDS Plus drill bits 5x300x360 mm - plastic hanger - 1 pc.

Rebardrill SDS Plus drill bits 5x150x210 mm - plastic hanger - 1 pc.

R-WBT Screws for concrete and timber T25 6.1x90 mm zinc flak coating - cardboard box - 100 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 5.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

R-WBT Screws for Concrete, 6.1 x 160mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Torsion Torx25 T25 bits, 25 mm - blister - 3 pcs.

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 80mm, Zinc Flake - cardboard box - 250 pcs.

Torx25 long bits, 200 mm - blister - 1 pc.

Rebardrill SDS Plus drill bits 5x300x360 mm - plastic hanger - 1 pc.

Rebardrill SDS Plus drill bits 5x150x210 mm - plastic hanger - 1 pc.

R-WBT Screws for concrete and timber T25 6.1x90 mm zinc flak coating - cardboard box - 100 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 5.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

R-WBT Screws for Concrete, 6.1 x 160mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Torsion Torx25 T25 bits, 25 mm - blister - 3 pcs.

Features

Telescopic sleeve for flat roof insulation fixings

  • High impact - resistant material used ensures constant mechanical properties over the lifetime of a roof. Also, retains its properties over a wide temperature range.
  • The lenticular shape of the plate ensures a firm pressure on the membrane and no possibility of dragging and deforming the plate during assembly.
  • Internal sleeve design allows pre-assembly with any Rawlplug roofing screw, shortening installation.
  • The reduced diameter makes it easier to pierce the membrane and install in dense materials such as PIR / PUR and mineral wool.
  • The lower part of the connector telescope has been designed in the shape of a cone with an optimum angle of inclination which significantly affects the speed of its installation.
  • Guarantees the highest load capacity of the roof construction for both static and dynamic loads in accordance with ETAG006.

rawlplug_roofing_insul

Krok_po_kroku_jak_zamocowac_izolacje_dachu_plaskiego_za_pomoca_tulei_teleskopowych

Concrete

Concrete

Concrete slab

Concrete slab

Metal sheet & profiles

Metal sheet & profiles

Plywood

Plywood

Chipboard

Chipboard

Timber

Timber

Approved surfaces

Flat roofs

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Telescopic sleeve with round plate R-GOK-II 50x105 mm polypropylene - cardboard box - 250 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Oval steel flange R-POW 80x40 mm 5.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Telescopic sleeve with round plate R-GOK-II 50x105 mm polypropylene - cardboard box - 250 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Oval steel flange R-POW 80x40 mm 5.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Drill the hole of required diameter and depth.

2

Using drilling machine, drive the R-WBT screw into substrate until fixing depth is reached.

3

Properly mounted sleeve with R-WX screw.

4

Place the plastic sleeve with the WX screw in the insulating material.

5

Using a screwdriver, screw in the connector with the WX screw until the required depth is obtained.

6

Properly mounted sleeve with WX screw.

Installation data
