R-KEX-II-385
5906675028538

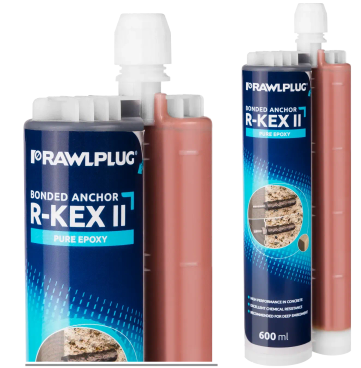

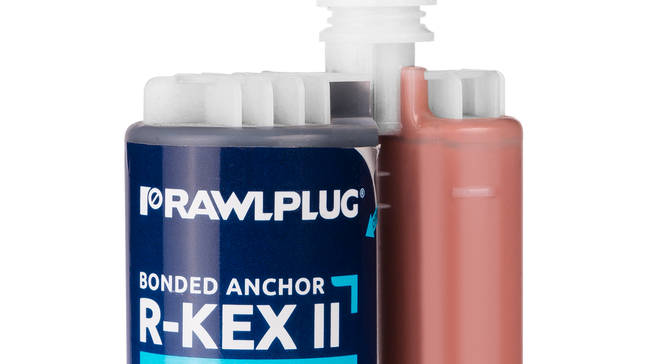

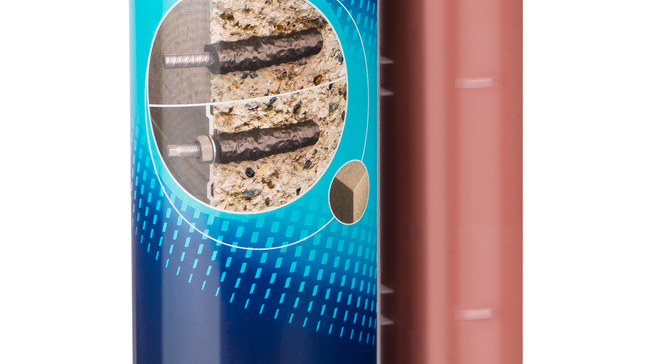

High-quality bonded anchor based on epoxy resin, approved for cracked concrete, as well as reinforced and unreinforced concrete
Define product parameters:
Unit pack
10.00 pcs.6.71 kg
Bulk pack
10.00 pcs.6.71 kg
Pallet
560.00 pcs.389.00 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
High-quality bonded anchor based on epoxy resin, approved for cracked concrete, as well as reinforced and unreinforced concrete
rawlplug_rkexii_pure_e
Montaz_kotwy_chemicznej_obciazanie_ukladu
Czymjestkotwachemicznaijakjeju_ywa__
Rawlplug_Academy_jaki_otwor_pod_kotwe_chemiczna
Rawlplug_Academy_jak_wyczyscic_otwor_pod_kotwe_chemiczna
RKEM_II_Zapowiedz_jak_zamontowac_bojler_za_pomoca_kotwy_chemicznej
Rawlplug_Academy_bledy_montazu_kotwy_chemicznej
R_KEM_II_jak_zamontowa_bojler
Jak_kotw_chemiczn_wybra__
Jakprawid_owou_y_kotwychemicznej_
Approved surfaces
Bonded anchors version | Packaging and quantity | Index | EAN | Catalog price for pc. net |
|---|
Drill a hole of appropriate diameter and depth.
Blow out the dust at least 4 times with the hand pump.
Remove drill cuttings in the hole using the brush four times.
Blow out the dust at least 4 times with the hand pump.
Insert cartridge into the gun and attach the nozzle.
When beginning dispensing from a new cartouche, discard approximately 10 cm of resin to ensure thorough mixing of the components.
Fill the hole 70% with resin (follow the assembly instructions specific to the type of resin).

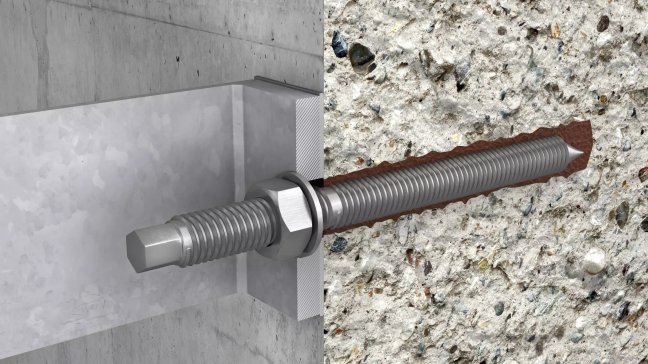

Immediately insert the rebar, slowly and with slight twisting motion. Remove any excess resin around the hole before it sets and leave it undisturbed until the curing time elapses.
Leave the anchor undisturbed unitl the curing time elapses.
Tighten to the recommended torque.
