  2. KI-10 Hammer-in facade fixing with plastic pin 10x220 mm - cardboard box - 250 pcs.

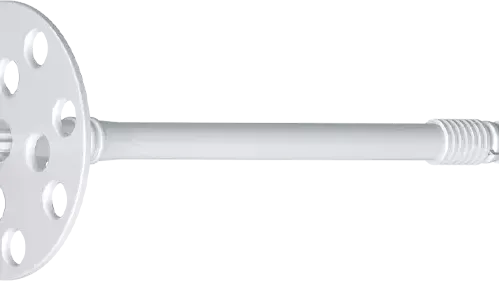

KI-10 Hammer-in facade fixing with plastic pin 10x220 mm - cardboard box - 250 pcs.

Universal

R-KI-220

5906675270029

Rawlplug

Hammer-in facade fixing with reinforced plastic nail

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    250.00 pcs.5.07 kg

  • Bulk pack

    250.00 pcs.5.07 kg

  • Pallet

    7500.00 pcs.152.10 kg

Related products

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

KWL - 90mm Insulation Retaining PP Plate - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

Polystyrene cap KES - 63x20 mm white - cardboard box - 250 pcs.

Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Counterbore plastic cutter for EPS and mineral wool KFS 63x23,5 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

KWL - 90mm Insulation Retaining PP Plate - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

Polystyrene cap KES - 63x20 mm white - cardboard box - 250 pcs.

Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Counterbore plastic cutter for EPS and mineral wool KFS 63x23,5 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

Features

Hammer-in facade fixing with reinforced plastic nail

  • Installation in all base materials (categories A,B,C,D,E).
  • The plastic nail reduces heat transmission (value 0.0 W/K).
  • Plastic nail reinforced with glass fibre allows fast and trouble-free installation with correct expansion of the plug.
  • Expansion zone designed for low embedment depths, reducing the amount of drilling required.
  • Can be used with additional KWL insulation holding plate, available in 90, 110 and 140 mm flange sizes (recommended for soft insulation materials such as mineral wool).
  • Optimal product parameters enable cost-saving solutions.
  • Optimum plate stiffness (0,5 kN/mm), ensures stability and excellent pull-over values.

Substrates

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Vertically-perforated clay block (C)

Vertically-perforated clay block (C)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Lightweight concrete block

Lightweight concrete block

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Lightweight concrete

Lightweight concrete

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Approved surfaces

Applications

Ventilated facades

Facades - thermal insulation systems

Full list of variations

Length
Length
Type of package
Pieces. per pack.
Index
EAN
90 mm

Cardboard box

250R-KI-0905906675258188

Contact with us and check out our terms of cooperation

140 mm

Cardboard box

250R-KI-1405906675258201

Contact with us and check out our terms of cooperation

180 mm

Cardboard box

250R-KI-1805906675258225

Contact with us and check out our terms of cooperation

120 mm

Cardboard box

250R-KI-1205906675258195

Contact with us and check out our terms of cooperation

160 mm

Cardboard box

250R-KI-1605906675258218

Contact with us and check out our terms of cooperation

70 mm

Cardboard box

250R-KI-0705906675258171

Contact with us and check out our terms of cooperation

200 mm

Cardboard box

250R-KI-2005906675258232

Contact with us and check out our terms of cooperation

220 mm

Cardboard box

250R-KI-2205906675270029

Contact with us and check out our terms of cooperation

Substitutes

KI-10N Long expansion zone hammer-in facade fixing with metal pin 10x220 mm - cardboard box - 250 pcs.

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete

R-TFIX-8M Universal Hammer-In Façade Fixing with Plastic Overmoulded Nail 8 x 215mm - cardboard box - 100 pcs.

Versatile hammer-in facade fixing with steel nail recommended for ETICS.

Hammer-in facade fixing with plastic pin TFIX-8P 215 mm - cardboard box - 100 pcs.

Versatile hammer-in facade fixing with plastic nail recommended for ETICS

KI-10N Long expansion zone hammer-in facade fixing with metal pin 10x220 mm - cardboard box - 250 pcs.

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete

R-TFIX-8M Universal Hammer-In Façade Fixing with Plastic Overmoulded Nail 8 x 215mm - cardboard box - 100 pcs.

Versatile hammer-in facade fixing with steel nail recommended for ETICS.

Hammer-in facade fixing with plastic pin TFIX-8P 215 mm - cardboard box - 100 pcs.

Versatile hammer-in facade fixing with plastic nail recommended for ETICS

Services

Design Consulting

Design Consulting

EasyFix

EasyFix

E-learning training

E-learning training

Learn more
Rawlplug Academy

Rawlplug Academy

Installation guide

Installation manual

Installation step by step

1

Drill a hole of required diameter and depth. Drilling depth of min 35 mm in masonry, 50 mm in perforated materials and 70 mm in lightweight concrete block and aerated concrete.

2

Blow out dust at least 4 times with a hand pump.

3

Lightly tap the plastic sleeve through the insulation material into hole with a hammer, until fixing depth is reached.

4

Lightly tap the plastic nail into the plastic sleeve until fixing is secure and flush with insulation material. Embedment depth of min 25 mm in masonry, 40 mm in perforated materials and 60 mm in lightweight concrete block and aerated concrete.

5

In soft insulation panels the fixing should be combined with insulation retaining plates KWL 90, 110, 140 mm.

Installation data
