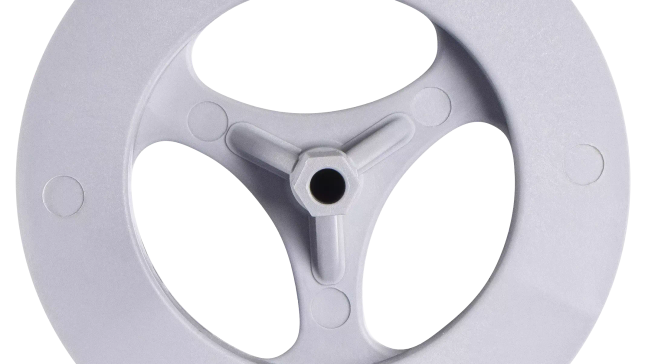

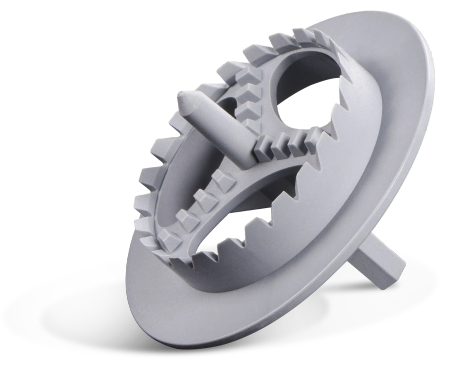

Counterbore plastic cutter for EPS and mineral wool KFS 63x23,5 mm - cardboard box - 1 pc.

Universal

K-KFS-63/20

5906675422114

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

Define product parameters:

Packaging and quantity

Related products

KI-10 Hammer-in facade fixing with plastic pin 10x160 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10 Hammer-in facade fixing with plastic pin 10x90 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10 Hammer-in facade fixing with plastic pin 10x140 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10 Hammer-in facade fixing with plastic pin 10x120 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10 Hammer-in facade fixing with plastic pin 10x180 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10 Hammer-in facade fixing with plastic pin 10x220 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10N Long expansion zone Hammer-in facade fixing with metal pin 10x180 mm - cardboard box - 250 pcs.

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete

KI-10 Hammer-in facade fixing with plastic pin 10x200 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10M Hammer-in facade fixing with metal pin 10x160 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with steel nail for countersunk installation with additional insulation cap

KI-10N Long expansion zone Hammer-in facade fixing with metal pin 10x260 mm - cardboard box - 200 pcs.

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete

KI-10 Hammer-in facade fixing with plastic pin 10x70 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10N Long expansion zone Hammer-in facade fixing with metal pin 10x220 mm - cardboard box - 250 pcs.

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete

Features

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

  • Precise tool construction allows to cut polystyrene, polyurethane and mineral wool boards
  • Countersunk installation (with post-installed insulation cap) reduces heat transmission and results in a homogenous insulation surface.
  • Cost-saving solution, as countersunk installation allows selection of shorter fixings.

Substrates

Polystyrene (EPS) boards

Polystyrene (EPS) boards

Mineral wool boards

Mineral wool boards

Approved surfaces

Applications

Facades - thermal insulation systems

Services

Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

Rawltruck

Rawltruck

Warranty

Warranty

Installation guide

Installation manual

Installation step by step

1

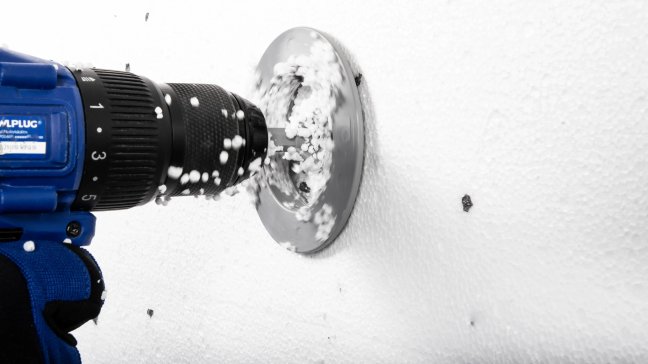

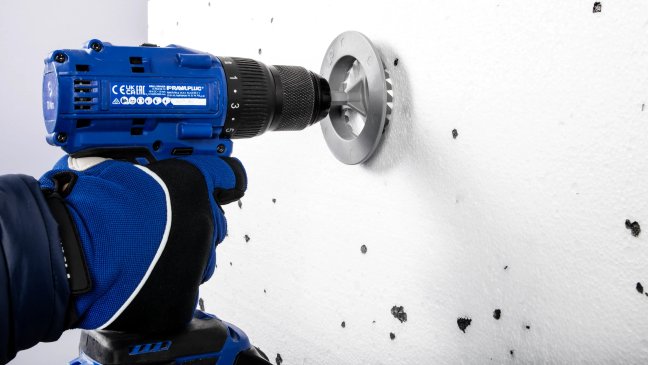

Cut the hole in insulation board.

2

Drill a hole of appropriate diameter and depth.

3

Lightly tap the plastic sleeve through the insulation material into hole with a hammer, until fixing depth is reached.

4

Insert cap into countersunk hole in insulation board following installation of the facade fixing.

5

Proper recessed installation.
