KES-63/20-G
5906675422886

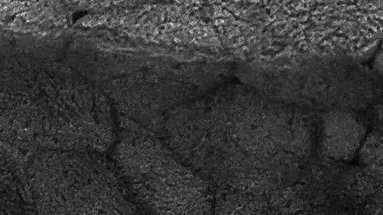

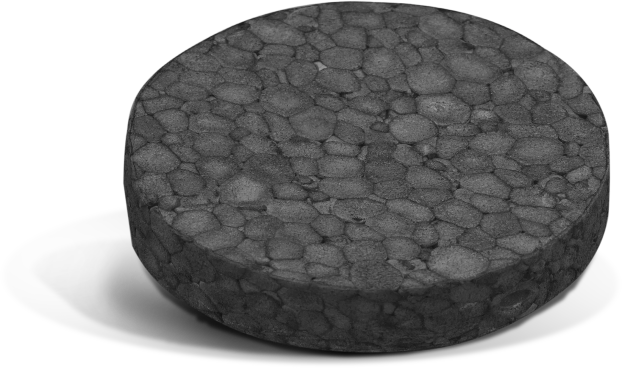

Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface
Define product parameters:
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface
Approved surfaces
Design Consulting
Technical Support 2
Rawlplug Academy
Rawltruck
Wyciąć otwór w wełnie mineralnej za pomocą frezu KFS
KI_10M_concrete_wool_inst_draw_02
KI_10M_concrete_wool_inst_draw_05
KI_10M_concrete_wool_inst_draw_06
KI_10M_concrete_wool_inst_draw_07
Cut the hole in insulation board.
Drill a hole of appropriate diameter and depth.
Hammer the steel nail into the plastic sleeve until fixing is secure and flush with insulation material. Embedment depth of min 25 mm in base materials category A, B, C (concrete, solid and perforated bricks), 40 mm in base materials category D (lightweight concrete blocks) and 60 mm in aerated concrete.
Insert cap into countersunk hole in insulation board following installation of the facade fixing.
Proper recessed installation.
