Site test - R-FF1-N frame fixings in concrete

12 November 2024 2 min

Share our blog post

We are testing R-FF1-N frame fixings in concrete at a hotel construction site.

Share our blog post

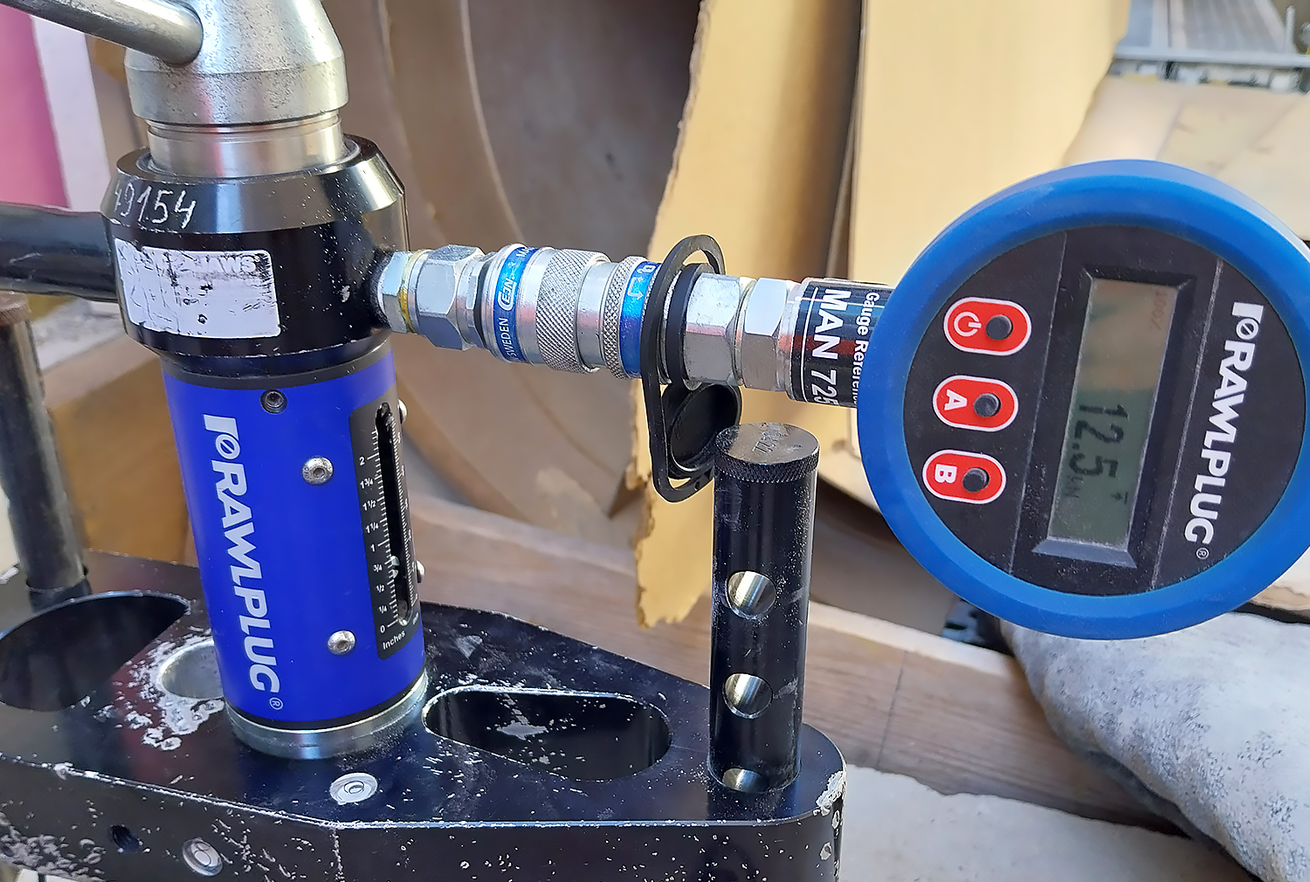

R-FF1-N frame fixings are enjoying enduring popularity. This time, we visited a hotel construction site to carry out pull-out tests on behalf of the building inspector. Our fixing once again passed the demanding test!

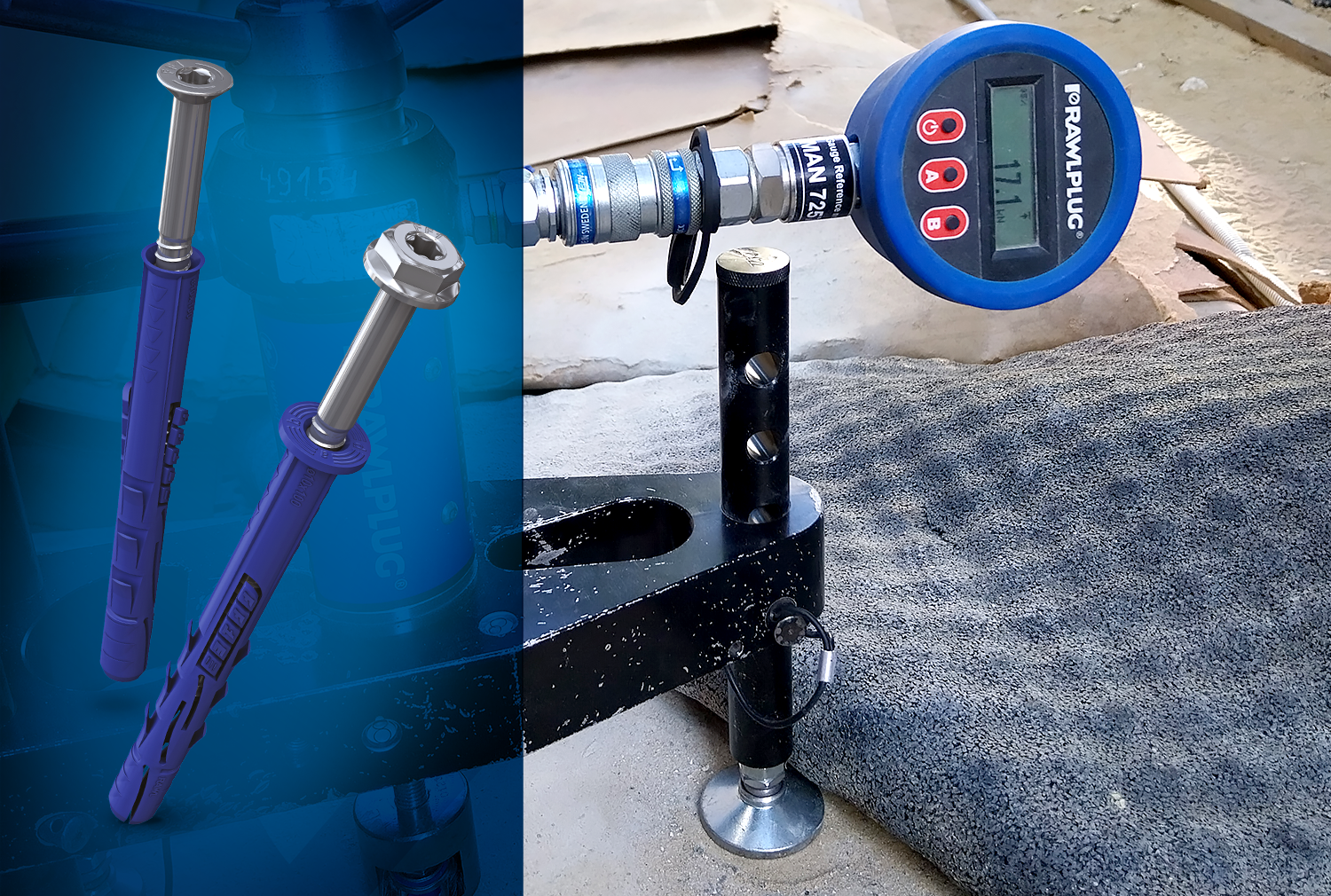

The R-FF1-N-10K080/DT frame fixing is a universal frame fixing with a flange and hexagonal head - a versatile solution dedicated to a wide range of applications, including fixing hard materials such as steel. Its design allows for multi-axis strutting, which ensures the stability and strength of the fixing. The specially designed internal geometry of the tee adapts perfectly to the head of the screw, guaranteeing a secure hold. Thanks to the advanced polyamide formulation, the fixing achieves the highest performance in all ETAG 020 substrate categories (A, B, C, D).

Rawlplug offers professional fixing tests, which can be carried out both during the design phase to assess the load-bearing capacity of the substrate and select the right fixing system, and after installation. This service provides full support at every stage of the project, guaranteeing the safety and reliability of the solutions used.

Would you like to order a site test? Are you looking for advice?

Take advantage of our range of tests, design and professional technical advice!

See how frame dowels are tested on site

According to ETA-12/0398, the declared characteristic load capacity in concrete of class min. C16/C20 is 8.5 kN, for an anchorage depth of 70 mm.

Check the offer and buy!

See the whole range of frame fixings in Rawlplug's offer.
Get to know a tool which makes installing frame dowels in aerated concrete easier - frame fixings setting tool R-FF1 and R-FFS.

How does the site test work? Watch the video!
