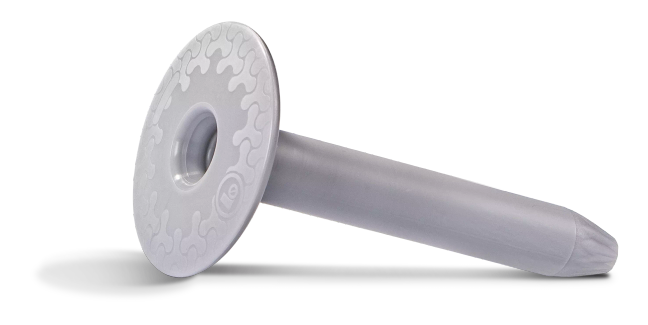

  2. Telescopic sleeve with round plate R-GOK-II 50x425 mm polypropylene - cardboard box - 50 pcs.

Telescopic sleeve with round plate R-GOK-II 50x425 mm polypropylene - cardboard box - 50 pcs.

Universal
New

R-GOK-II-425

5906675530291

Telescopic sleeve for flat roof insulation fixings

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.2.40 kg

  • Bulk pack

    50.00 pcs.2.40 kg

  • Pallet

    1600.00 pcs.76.80 kg

Related products

Round steel washer R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

R-POW Oval Steel Washer, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

R-POK Round Steel Washer, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Torx25 long bits, 200 mm - blister - 1 pc.

Long Torsion bits

Torx25 long bits, 150 mm - blister - 1 pc.

Long Torsion bits

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 120mm, Zinc Flake - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 100mm, Zinc Flake - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WBT Screws for Concrete, 6.1 x 120mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 80mm, Zinc Flake - cardboard box - 250 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WBT Screws for Concrete, 6.1 x 100mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

Rebardrill SDS Plus drill bits 5x300x360 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

Round steel washer R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

R-POW Oval Steel Washer, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

R-POK Round Steel Washer, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Torx25 long bits, 200 mm - blister - 1 pc.

Long Torsion bits

Torx25 long bits, 150 mm - blister - 1 pc.

Long Torsion bits

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 120mm, Zinc Flake - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 100mm, Zinc Flake - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WBT Screws for Concrete, 6.1 x 120mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 80mm, Zinc Flake - cardboard box - 250 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WBT Screws for Concrete, 6.1 x 100mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

Rebardrill SDS Plus drill bits 5x300x360 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

Features

Telescopic sleeve for flat roof insulation fixings

  • High impact - resistant material used ensures constant mechanical properties over the lifetime of a roof. Also, retains its properties over a wide temperature range.
  • Should be used with combination of any Rawlplug roofing screws: R-WBT to concrete, R-WX/WO to steel sheat, R-WW to wood.
  • The lenticular shape of the plate ensures a firm pressure on the membrane and no possibility of dragging and deforming the plate during assembly.
  • Internal sleeve design allows pre-assembly with any Rawlplug roofing screw, shortening installation.

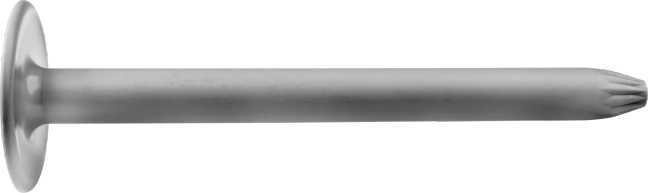

  • The lower part of the connector telescope has been designed in the shape of a cone with an optimum angle of inclination which significantly affects the speed of its installation.
  • Guarantees the highest load capacity of the roof construction for both static and dynamic loads in accordance with ETAG006.
  • The reduced diameter makes it easier to pierce the membrane and install in dense materials such as PIR / PUR and mineral wool.
  • Pre-assembled sleeve with a screw shortens the assembly time, additionally it has a security in the form of a locking O-ring, which prevents the screw from slipping out.

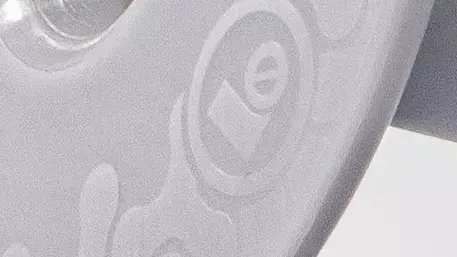

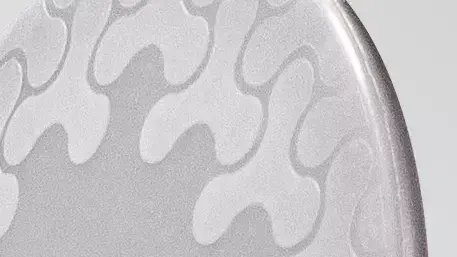

  • The engraving on the plate reduces the effect of the notch and crack propagation (spreading of damage in the material subjected to stress).

Product video

Krok po kroku: jak zamocować izolację dachu płaskiego za pomocą tulei teleskopowych

Substrates

Concrete

Concrete

Reinforced concrete

Reinforced concrete

Concrete slab

Concrete slab

Hollow-core slab

Hollow-core slab

Metal sheet & profiles

Metal sheet & profiles

Timber

Timber

Oriented strand board

Oriented strand board

Chipboard

Chipboard

Light wood wool boards

Light wood wool boards

Fiber cement boards

Fiber cement boards

Hollow core roof plate

Hollow core roof plate

Approved surfaces

Applications

Flat roofs

Services

EasyFix

EasyFix

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Design calculations

Design calculations

Technical Support 2

Technical Support 2

Installation guide

Installation manual

Installation step by step

1

Place the plastic sleeve R-GOK-II with the R-WX screw in the insulating material.

2

Using a driver, screw in the R-GOK-II connector with the R-WX screw until the appropriate depth is achieved.

3

Properly mounted sleeve R-GOK-II with R-WX screw.

4

Drill the hole in concrete of required diameter and depth.

5

Place the plastic sleeve R-GOK-II with the R-WBT screw in the insulating material.

6

Using a driver, screw in the R-GOK-II connector with the R-WBT screw until the appropriate depth is achieved.

7

Properly mounted sleeve R-GOK-II with R-WBT screw.

8

Place the plastic sleeve R-GOK-II with the R-WO screw in the insulating material.

9

Using a driver, screw in the R-GOK-II connector with the R-WO screw until the appropriate depth is achieved.

10

Properly mounted sleeve R-GOK-II with R-WO screw.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-23/0198

1488-CPR-0697/Z

DoP-23/0198-R-GOK-II

ITB-KOT-2022/2206 w1

020-UWB-1121/Z

KDWU-2022-2206-GOK-II
